Hardware Architectures for Modern Software-Defined Storage: A Deep Dive

Abstract

Software-Defined Storage (SDS) has emerged as a transformative paradigm in data management, offering flexibility, scalability, and cost-effectiveness compared to traditional hardware-centric storage solutions. This research report delves into the crucial role of hardware architectures in realizing the full potential of SDS. While the choice of software is paramount, the underlying hardware significantly impacts performance, efficiency, and overall system capabilities. We explore a broad spectrum of hardware considerations for SDS deployments, encompassing processing power, memory technologies, networking infrastructure, and storage media. Beyond the immediate requirements, this report also analyzes the influence of emerging technologies like computational storage, persistent memory, and advanced interconnects on the future landscape of SDS. Furthermore, we examine the trade-offs between different hardware choices concerning cost, power consumption, and operational complexity, providing a comprehensive overview for architects and engineers designing and implementing SDS solutions.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

1. Introduction

Software-Defined Storage (SDS) represents a fundamental shift in storage management. It decouples storage software from the underlying hardware, enabling administrators to manage and provision storage resources independently of specific hardware vendors or configurations [1]. This abstraction allows for greater agility, scalability, and automation in storage operations, leading to significant cost savings and improved resource utilization. However, the promise of SDS hinges on the appropriate selection and configuration of the underlying hardware infrastructure.

While SDS solutions provide a layer of abstraction, the physics of data storage and transfer remain crucial. The hardware dictates the ultimate performance limits of the system. Factors such as storage media latency, network bandwidth, processing power available for data management tasks, and memory capacity for caching directly impact the overall effectiveness of the SDS implementation. Consequently, a thorough understanding of hardware options and their suitability for various SDS workloads is essential.

This research report aims to provide a comprehensive overview of hardware considerations for modern SDS architectures. We will explore different hardware components, discuss their performance characteristics, and analyze their impact on SDS deployments. We will also investigate emerging technologies that are poised to shape the future of SDS hardware. The goal is to provide readers with the knowledge and insights necessary to make informed decisions about hardware selection for SDS solutions.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

2. Core Hardware Components for SDS

An SDS infrastructure comprises several key hardware components, each playing a crucial role in the overall system performance. These components include:

2.1. Processing Units (CPUs)

CPUs are the brains of the SDS system, responsible for executing the storage software and managing data operations. In an SDS environment, CPUs handle tasks such as data replication, erasure coding, data compression, encryption, and metadata management. The processing power of the CPUs directly affects the throughput and latency of the storage system.

For SDS deployments, multi-core processors are generally preferred. The number of cores and the clock speed of the processor are critical factors to consider. A higher core count allows for parallel processing of multiple storage tasks, while a faster clock speed improves the performance of individual tasks. The choice of CPU architecture (e.g., x86, ARM) also influences performance, power consumption, and cost. In recent years, ARM-based processors have gained traction in storage applications due to their energy efficiency and high core density [2].

Furthermore, CPU offloading technologies, such as Intel QuickAssist Technology (QAT), can significantly improve the performance of CPU-intensive storage operations. QAT provides hardware acceleration for cryptographic operations, compression, and other tasks, freeing up CPU cycles for other storage-related processes.

2.2. Memory (RAM)

Memory is used for caching data and metadata, improving the response time of the storage system. Sufficient memory capacity is essential for handling large workloads and minimizing latency. The amount of memory required depends on the size of the dataset, the workload characteristics, and the caching policies of the SDS software.

In addition to capacity, the speed of the memory also affects performance. Faster memory, such as DDR4 or DDR5, can significantly reduce latency. Non-Volatile DIMM (NVDIMM) technologies, such as Intel Optane Persistent Memory, offer persistent storage with near-DRAM speeds. NVDIMMs can be used to store metadata or frequently accessed data, further improving performance and reducing latency [3].

2.3. Networking Infrastructure

The networking infrastructure is responsible for connecting the storage nodes and transferring data between them. The bandwidth and latency of the network directly impact the overall performance of the SDS system. High-speed networks, such as Ethernet (e.g., 25 GbE, 40 GbE, 100 GbE) or InfiniBand, are essential for handling demanding storage workloads.

Remote Direct Memory Access (RDMA) technologies, such as RoCE (RDMA over Converged Ethernet) and iWARP (Internet Wide Area RDMA Protocol), can significantly improve network performance by bypassing the operating system kernel and directly transferring data between memory locations [4]. RDMA reduces latency and CPU utilization, leading to increased throughput and improved overall system efficiency.

Furthermore, network virtualization technologies, such as Software-Defined Networking (SDN), can be used to optimize network performance and manage network resources in an SDS environment. SDN allows for dynamic configuration of network paths and bandwidth allocation, ensuring that storage traffic is efficiently routed and prioritized.

2.4. Storage Media

The storage media is where data is physically stored. The choice of storage media significantly impacts the performance, cost, and capacity of the SDS system. Several storage media options are available, each with its own advantages and disadvantages.

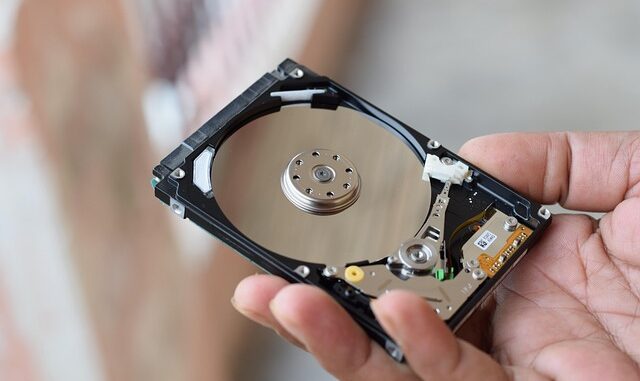

2.4.1. Hard Disk Drives (HDDs)

HDDs offer the lowest cost per gigabyte but have the highest latency and lowest IOPS (Input/Output Operations Per Second) compared to other storage media. HDDs are suitable for storing large amounts of data that are not frequently accessed, such as archival data or backup data.

2.4.2. Solid State Drives (SSDs)

SSDs offer significantly lower latency and higher IOPS compared to HDDs. SSDs are suitable for storing frequently accessed data, such as operating system files, application data, and virtual machine images. SSDs are generally more expensive than HDDs but offer significantly better performance.

SSDs are available in different form factors and interfaces, including:

• SATA SSDs: Use the SATA interface and are typically used in consumer-grade devices.
• SAS SSDs: Use the SAS interface and are typically used in enterprise-grade devices. SAS SSDs offer higher performance and reliability compared to SATA SSDs.
• NVMe SSDs: Use the NVMe (Non-Volatile Memory Express) protocol, which is designed specifically for flash memory. NVMe SSDs offer the lowest latency and highest IOPS compared to SATA and SAS SSDs. NVMe SSDs connect directly to the PCIe bus, bypassing the SATA or SAS controller, resulting in significantly improved performance.

2.4.3. Flash Arrays

Flash arrays are storage systems that are built entirely with flash memory. Flash arrays offer the highest performance and lowest latency compared to other storage media. Flash arrays are suitable for demanding workloads that require extremely low latency and high IOPS, such as online transaction processing (OLTP) databases and virtual desktop infrastructure (VDI) [5].

2.4.4. Hybrid Arrays

Hybrid arrays combine HDDs and SSDs to provide a balance between performance and cost. Hybrid arrays typically use SSDs as a caching tier to accelerate frequently accessed data, while HDDs are used to store less frequently accessed data. Hybrid arrays can be a cost-effective option for SDS deployments that require a mix of performance and capacity.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

3. Connectivity and Protocols

The connectivity between the storage devices and the compute nodes is another critical factor in SDS performance. The choice of connectivity protocol affects the bandwidth, latency, and overall efficiency of the storage system.

3.1. SAS (Serial Attached SCSI)

SAS is a widely used interface for connecting HDDs and SSDs to servers. SAS offers higher bandwidth and reliability compared to SATA. SAS is a suitable option for connecting large numbers of drives to a server.

3.2. SATA (Serial ATA)

SATA is a common interface for connecting HDDs and SSDs in consumer-grade devices. SATA offers lower bandwidth and reliability compared to SAS. SATA is a cost-effective option for connecting a small number of drives to a server.

3.3. NVMe (Non-Volatile Memory Express)

NVMe is a high-performance protocol designed specifically for flash memory. NVMe SSDs connect directly to the PCIe bus, bypassing the SATA or SAS controller, resulting in significantly improved performance. NVMe is the preferred interface for high-performance storage applications.

3.4. NVMe-oF (NVMe over Fabrics)

NVMe-oF extends the NVMe protocol over a network fabric, allowing for remote access to NVMe SSDs. NVMe-oF enables disaggregated storage architectures, where storage devices are pooled and shared across multiple compute nodes. NVMe-oF can significantly improve the performance and scalability of SDS deployments [6]. Several transport protocols are used for NVMe-oF, including:

• RoCE (RDMA over Converged Ethernet): Uses RDMA to provide low-latency, high-bandwidth access to NVMe SSDs over Ethernet.
• iWARP (Internet Wide Area RDMA Protocol): Another RDMA protocol for NVMe-oF.
• TCP (Transmission Control Protocol): Offers broader compatibility but typically with higher latency compared to RDMA-based protocols.
• Fibre Channel: A traditional storage networking technology adapted to support NVMe-oF.

The choice of transport protocol depends on the specific requirements of the SDS deployment.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

4. Emerging Technologies

Several emerging technologies are poised to shape the future of SDS hardware.

4.1. Computational Storage

Computational storage devices (CSDs) integrate processing capabilities directly into the storage device. CSDs can perform data processing tasks, such as compression, encryption, and data analytics, directly on the storage device, reducing the workload on the host CPU. Computational storage can significantly improve the performance and efficiency of SDS deployments [7].

4.2. Persistent Memory

Persistent memory (PM) technologies, such as Intel Optane Persistent Memory, offer persistent storage with near-DRAM speeds. PM can be used to store metadata or frequently accessed data, further improving performance and reducing latency. PM can also be used to implement persistent caches, ensuring data durability in the event of a power failure.

4.3. Disaggregated Storage

Disaggregated storage architectures separate storage resources from compute resources, allowing for independent scaling of each. NVMe-oF enables disaggregated storage architectures, where storage devices are pooled and shared across multiple compute nodes. Disaggregated storage can significantly improve the flexibility and efficiency of SDS deployments.

4.4. Gen-Z

Gen-Z is a high-performance interconnect technology that is designed to connect memory, processors, and storage devices in a disaggregated and composable manner. Gen-Z offers extremely low latency and high bandwidth, making it a suitable option for future SDS architectures [8].

Many thanks to our sponsor Esdebe who helped us prepare this research report.

5. Hardware Selection Considerations

When selecting hardware for SDS, several factors must be considered.

5.1. Workload Requirements

The workload requirements are the most important factor to consider when selecting hardware for SDS. The type of applications that will be running on the SDS system, the size of the dataset, and the performance requirements all influence the hardware selection.

5.2. Budget

The budget is another important factor to consider. The cost of the hardware must be balanced against the performance requirements and the overall value of the SDS system.

5.3. Scalability

The scalability of the hardware is important to consider if the SDS system is expected to grow over time. The hardware should be able to scale to meet future demands.

5.4. Power Consumption

The power consumption of the hardware is an important factor to consider, especially in large-scale SDS deployments. Energy-efficient hardware can significantly reduce operating costs.

5.5. Vendor Reliability

The reliability of the hardware vendor is an important factor to consider. Choose a vendor with a proven track record of providing reliable hardware and excellent support.

5.6. Compatibility with SDS Software

Ensure that the selected hardware is fully compatible with the chosen SDS software. This includes ensuring that the drivers and firmware are compatible and that the hardware is supported by the SDS software’s management tools.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

6. The Trade-Offs: Cost, Performance, and Complexity

Choosing the right hardware for SDS inevitably involves navigating trade-offs. There’s no one-size-fits-all solution, and the optimal configuration depends heavily on the specific requirements of the environment.

• Cost vs. Performance: Higher performance often translates to higher cost. NVMe SSDs are faster than SATA SSDs but more expensive. Similarly, high-speed networking (e.g., 100 GbE) is more costly than slower alternatives. Balancing the need for performance with budget constraints is crucial. This often involves carefully analyzing the workload and identifying performance bottlenecks. For example, if the workload is primarily read-intensive, investing in a large SSD cache might be more cost-effective than deploying all-flash storage.
• Performance vs. Complexity: Advanced technologies like computational storage and NVMe-oF can significantly improve performance but also increase the complexity of the system. These technologies require specialized expertise to configure and manage. Simpler hardware configurations might be easier to deploy and maintain but might not offer the same level of performance. The level of in-house expertise and the availability of skilled personnel should be considered when choosing between different hardware options. Over-engineering the solution can lead to unnecessary complexity and increased operational costs. A phased approach, starting with a simpler configuration and gradually introducing more advanced technologies as needed, can be a viable strategy.
• Capacity vs. Performance: The density of storage devices (i.e., the amount of storage packed into a single device) also plays a role. Higher-density storage devices can reduce the overall footprint and power consumption of the system, but they might also have lower performance compared to lower-density devices. Furthermore, the failure domain increases with higher-density devices. If a high-density drive fails, a larger amount of data needs to be rebuilt, which can impact performance. A well-designed data protection strategy, such as erasure coding, is essential to mitigate the risks associated with high-density storage devices.

Ultimately, the best approach is to carefully analyze the workload, identify the performance bottlenecks, and choose the hardware that provides the best balance of cost, performance, and complexity.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

7. Conclusion

The hardware foundation is critical for realizing the full potential of software-defined storage. Selecting the appropriate CPUs, memory, networking, and storage media, along with carefully considering connectivity protocols, significantly influences the performance, scalability, and cost-effectiveness of SDS deployments. Emerging technologies such as computational storage and persistent memory are set to further revolutionize SDS architectures, offering enhanced performance and efficiency. By understanding the various hardware options available and carefully considering workload requirements, budget constraints, and scalability needs, organizations can build robust and optimized SDS solutions that meet their specific needs.

Many thanks to our sponsor Esdebe who helped us prepare this research report.

References

[1] Armbrust, M., Fox, A., Griffith, R., Joseph, A. D., Katz, R., Konwinski, A., … & Zaharia, M. (2010). A view of cloud computing. Communications of the ACM, 53(4), 50-58.

[2] Asokan, V., & Kamalam, G. K. (2020). ARM Processor for Data Centers. European Journal of Molecular & Clinical Medicine, 7(11), 2020.

[3] Perlmutter, D. (2018). Persistent memory: A new paradigm for memory and storage. IEEE Micro, 38(6), 18-24.

[4] Regnier, G., Gendre, T., & Vivien, F. (2015). Remote direct memory access (RDMA) protocols for high-performance computing: A survey. Journal of Parallel and Distributed Computing, 77, 1-18.

[5] Mellor, C. (2016). All-flash arrays: A maturing storage technology. Computer Technology Review, 36(2), 20-23.

[6] Besta, M., Hoefler, T. (2020). Survey and Roadmap of RDMA over Converged Ethernet (RoCE). ACM Computing Surveys. 53(6):1-35.

[7] Agarwal, S., Mutlu, O., & Seznec, A. (2018). Exploring computational storage. ACM SIGARCH Computer Architecture News, 46(1), 383-397.

[8] Gen-Z Consortium. (2024). Gen-Z Fabric Specification. Retrieved from https://genzconsortium.org/
