Abstract
Data centers, the backbone of modern digital infrastructure, are substantial energy consumers, with cooling systems accounting for a significant portion of their operational expenditure and carbon footprint. This research report presents a comprehensive analysis of advanced cooling strategies for data centers, moving beyond traditional methods to explore innovative and sustainable solutions. We delve into established techniques like hot aisle/cold aisle containment, liquid cooling, and free air cooling, providing a comparative analysis of their efficiency, cost-effectiveness, and applicability to diverse data center environments. Furthermore, we investigate emerging technologies such as evaporative cooling, immersion cooling, and advanced refrigeration cycles, evaluating their potential to enhance cooling performance and reduce energy consumption. The report also examines the crucial role of artificial intelligence (AI) and smart sensors in optimizing cooling systems through real-time monitoring, predictive modeling, and automated control. We discuss the integration of renewable energy sources, waste heat recovery, and alternative refrigerants to promote sustainable data center operations. Finally, we address the challenges and opportunities associated with adopting these advanced cooling strategies, considering factors such as scalability, reliability, environmental impact, and economic feasibility. This report aims to provide a comprehensive resource for data center operators, engineers, and researchers seeking to implement efficient, sustainable, and innovative cooling solutions.
Many thanks to our sponsor Esdebe who helped us prepare this research report.
1. Introduction
The exponential growth of digital data and the increasing demand for cloud computing have led to a proliferation of data centers worldwide. These facilities, housing thousands of servers and networking equipment, consume vast amounts of energy, primarily for powering IT equipment and maintaining optimal operating temperatures. Traditional cooling methods, such as air conditioning, are often inefficient and contribute significantly to the overall energy consumption of data centers, resulting in high operational costs and a substantial carbon footprint. The escalating environmental concerns and rising energy prices necessitate the adoption of more efficient and sustainable cooling strategies. This report investigates a range of advanced cooling technologies and management techniques designed to minimize energy consumption, reduce environmental impact, and improve the overall performance of data centers. We examine the trade-offs between different cooling solutions, considering factors such as initial investment, operating costs, energy efficiency, scalability, and environmental sustainability. The report also highlights the importance of integrated cooling management strategies that leverage AI, machine learning, and sensor technologies to optimize cooling performance in real-time.
Many thanks to our sponsor Esdebe who helped us prepare this research report.
2. Traditional Cooling Methods: Limitations and Challenges
2.1 Air Cooling
Air cooling, the most prevalent cooling method in data centers, relies on computer room air conditioners (CRACs) or computer room air handlers (CRAHs) to circulate cool air throughout the facility. While relatively simple to implement, air cooling faces several limitations. Firstly, air has a low thermal capacity compared to liquids, requiring large volumes of air to be circulated to effectively remove heat. This results in high energy consumption for fans and compressors. Secondly, air cooling systems often suffer from inefficiencies due to mixing of hot and cold air streams, creating hotspots and requiring overcooling of the entire data center to ensure adequate cooling of critical equipment. The Hot Aisle/Cold Aisle (HACA) containment strategy aims to mitigate this problem by physically separating hot exhaust air from cold supply air. However, even with HACA, air cooling systems are limited by the thermal resistance of air and the difficulty of effectively cooling high-density server racks. HACA effectiveness is also highly dependant on correct design and implementation which can be challenging to achieve in practice [1].
2.2 Chilled Water Cooling

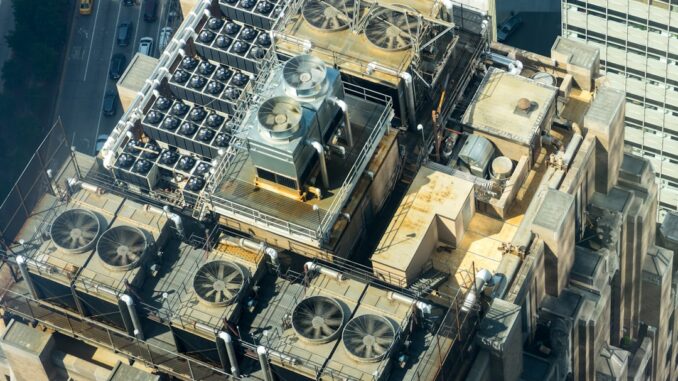

Chilled water cooling systems use a central chiller plant to produce chilled water, which is then circulated through cooling units in the data center. These units remove heat from the air, which is then circulated around the IT equipment. While more efficient than direct air cooling, chilled water systems still face challenges. The energy consumption of the chiller plant is a significant factor, and the efficiency of the chillers can vary greatly depending on the design and operating conditions. Furthermore, chilled water systems require a complex network of pipes and pumps, which can be expensive to install and maintain. Leakage in the system also leads to reduced performance and requires regular maintenance checks. Like air cooling, chilled water systems generally cool the entire room which is often innefficient due to hotspots or varying equipment loads [2].
2.3 Limitations and Energy Consumption
Traditional cooling methods often operate at a low Power Usage Effectiveness (PUE). PUE is the ratio of total facility energy to IT equipment energy, with a lower PUE indicating better energy efficiency. Modern data centers using air-based cooling have PUEs in the range of 1.5 to 2.0, meaning that 50% to 100% of the energy used to power the IT equipment is also used to cool it. This high energy consumption is a major concern, driving the need for more efficient and sustainable cooling solutions. The limitations of air and water based cooling systems become even more apparent with the continued increases in rack power density, making these methods increasingly difficult to scale.
Many thanks to our sponsor Esdebe who helped us prepare this research report.
3. Advanced Cooling Technologies
3.1 Liquid Cooling
Liquid cooling offers a significant improvement over air cooling due to the higher thermal capacity and thermal conductivity of liquids. This allows for more efficient heat removal and closer temperature control. There are two main types of liquid cooling: direct-to-chip cooling and immersion cooling.
3.1.1 Direct-to-Chip Cooling
Direct-to-chip cooling involves attaching cold plates or microchannel heat sinks directly to the heat-generating components, such as CPUs and GPUs. A coolant, typically water or a dielectric fluid, is circulated through the cold plates to remove heat. This method is highly effective at cooling high-density components and can significantly reduce the overall energy consumption of the cooling system. Direct-to-chip cooling can be incorporated into existing air-cooled data centers, making it a viable option for upgrading existing facilities. However, it requires modifications to the server hardware and careful consideration of coolant compatibility and leak prevention [3].
3.1.2 Immersion Cooling
Immersion cooling involves submerging the entire server or rack in a dielectric fluid, which removes heat through convection or boiling. The fluid can be either single-phase or two-phase. Single-phase immersion cooling relies on circulating the fluid through a heat exchanger to remove heat. Two-phase immersion cooling utilizes the latent heat of vaporization to remove heat, offering even greater cooling capacity. Immersion cooling offers several advantages, including high cooling efficiency, reduced noise levels, and improved server reliability due to the absence of fans and reduced temperature fluctuations. However, it requires specialized equipment and infrastructure, and may not be suitable for all data center environments. Concerns around fluid safety and compatibility, as well as the challenge of servicing equipment in a fluid-filled environment, also need to be addressed. Furthermore, dielectric fluids are often more expensive than water-based coolants, impacting the overall cost of the system [4].
3.2 Evaporative Cooling
Evaporative cooling utilizes the evaporative process to cool air. Water is evaporated, absorbing heat from the air and lowering its temperature. This method is particularly effective in dry climates where the humidity is low. Evaporative cooling can be implemented using direct or indirect methods. Direct evaporative cooling involves spraying water directly into the air stream, while indirect evaporative cooling uses a heat exchanger to transfer heat from the air to the water without directly mixing the air and water. Evaporative cooling offers significant energy savings compared to traditional air conditioning, but its effectiveness is limited by the humidity of the air. In humid climates, evaporative cooling may not provide sufficient cooling capacity [5].
3.3 Free Air Cooling (Air-Side Economization)
Free air cooling, also known as air-side economization, utilizes outside air to cool the data center when the ambient temperature is low enough. This can significantly reduce the energy consumption of the cooling system, as it eliminates the need for mechanical cooling. Free air cooling systems typically use filters to remove dust and contaminants from the air and may also incorporate humidification or dehumidification systems to maintain optimal humidity levels. The effectiveness of free air cooling depends on the climate and the availability of cool outside air. In colder climates, free air cooling can be used for a significant portion of the year, while in warmer climates, it may only be used during the cooler months. Indirect air-side economizers are often employed to avoid introducing potentially contaminated or humid outside air directly into the data center [6].
3.4 Emerging Technologies
3.4.1 Advanced Refrigeration Cycles
Advanced refrigeration cycles, such as transcritical CO2 refrigeration and absorption refrigeration, offer improved energy efficiency and reduced environmental impact compared to traditional vapor-compression refrigeration systems. Transcritical CO2 refrigeration uses carbon dioxide as a refrigerant, which has a low global warming potential (GWP). Absorption refrigeration uses heat as the energy source, which can be waste heat from other processes. These technologies are still relatively new in the data center industry, but they offer promising potential for reducing energy consumption and greenhouse gas emissions [7].
3.4.2 Microchannel Heat Exchangers
Microchannel heat exchangers offer improved heat transfer performance compared to traditional fin-and-tube heat exchangers. These heat exchangers use small channels to increase the surface area for heat transfer, resulting in more efficient heat removal. Microchannel heat exchangers can be used in a variety of cooling applications, including direct-to-chip cooling and evaporative cooling. However, they are more susceptible to fouling and require careful maintenance [8].
Many thanks to our sponsor Esdebe who helped us prepare this research report.
4. Role of AI and Smart Sensors in Cooling Optimization
4.1 Real-Time Monitoring and Control
Smart sensors and AI algorithms can be used to monitor the temperature, humidity, and airflow within the data center in real-time. This data can be used to optimize the cooling system by adjusting fan speeds, chiller settings, and other parameters to maintain optimal operating conditions. AI algorithms can also be used to predict future cooling needs based on historical data and current operating conditions. Predictive models help anticipate peaks in demand and adjust cooling systems proactively, preventing potential overheating and minimizing energy waste. This proactive approach contrasts with reactive adjustments made in traditional systems, which often lead to delays and inefficiencies. By constantly analyzing the data, AI-powered systems can identify anomalies and potential problems before they escalate, further improving the reliability and efficiency of the data center’s cooling infrastructure. The sensors used can include temperature sensors, humidity sensors, flow rate sensors, and power consumption sensors all providing data that can be used to build an efficient model [9].
4.2 Dynamic Cooling Management
AI can enable dynamic cooling management by adjusting cooling resources based on the workload and location of the IT equipment. For example, if a particular server rack is experiencing a high workload, the cooling system can automatically increase the airflow to that rack. Conversely, if a server rack is idle, the cooling system can reduce the airflow to that rack. Dynamic cooling management can significantly improve the energy efficiency of the cooling system by directing cooling resources where they are needed most. This approach minimizes the waste of energy associated with uniformly cooling the entire data center, regardless of actual demand. Machine learning algorithms can learn the patterns of workload distribution and dynamically adjust cooling parameters to match the changing needs of the data center. This level of adaptability ensures that cooling resources are used optimally, reducing energy consumption and operating costs [10].
4.3 Anomaly Detection and Predictive Maintenance
AI algorithms can be trained to detect anomalies in the cooling system, such as unexpected temperature spikes or drops in airflow. These anomalies can indicate potential problems with the cooling equipment, such as failing fans or leaking pipes. By detecting these problems early, data center operators can take corrective action before they lead to a major outage. Furthermore, AI can be used for predictive maintenance by analyzing historical data and sensor readings to predict when equipment is likely to fail. This allows data center operators to schedule maintenance proactively, minimizing downtime and preventing costly repairs. Predictive maintenance strategies are crucial for ensuring the long-term reliability and efficiency of the cooling infrastructure [11].
Many thanks to our sponsor Esdebe who helped us prepare this research report.
5. Waste Heat Recovery and Renewable Energy Integration
5.1 Waste Heat Recovery
Data centers generate a significant amount of waste heat, which can be captured and reused for other purposes. Waste heat can be used to heat buildings, generate electricity, or provide hot water for industrial processes. Waste heat recovery can significantly improve the overall energy efficiency of the data center and reduce its environmental impact. Several technologies can be used for waste heat recovery, including heat exchangers, absorption chillers, and organic Rankine cycle (ORC) systems. Heat exchangers can transfer heat from the data center’s exhaust air or liquid cooling system to another fluid, which can then be used for heating or other applications. Absorption chillers can use waste heat as the energy source to produce chilled water, which can be used for cooling. ORC systems can convert waste heat into electricity, which can be used to power the data center or sold back to the grid [12].
5.2 Renewable Energy Integration
Integrating renewable energy sources, such as solar, wind, and geothermal, can further reduce the environmental impact of data centers. Renewable energy can be used to power the IT equipment, cooling systems, and other infrastructure. On-site solar power generation is becoming increasingly common in data centers, as solar panels can be installed on the roof or in nearby areas. Wind turbines can also be used to generate electricity, but they require more space and may not be suitable for all locations. Geothermal energy can be used for both heating and cooling, but it requires access to geothermal resources. Integrating renewable energy sources can be challenging due to the intermittent nature of some renewable energy sources, such as solar and wind. However, energy storage systems, such as batteries, can be used to smooth out the fluctuations in renewable energy generation and ensure a reliable power supply. Power Purchase Agreements (PPAs) can also be used to source off-site renewable energy to power data centers [13].
Many thanks to our sponsor Esdebe who helped us prepare this research report.
6. Cost-Benefit Analysis and Implementation Considerations
6.1 Economic Factors
The implementation of advanced cooling strategies requires careful consideration of economic factors, including initial investment, operating costs, and return on investment. While some advanced cooling technologies may have higher upfront costs, they can often lead to significant long-term savings in energy consumption and operating expenses. A thorough cost-benefit analysis should be conducted to evaluate the economic viability of different cooling solutions. This analysis should consider factors such as energy prices, equipment costs, maintenance costs, and the expected lifespan of the equipment. Government incentives and tax credits can also play a significant role in reducing the cost of implementing sustainable cooling solutions. Furthermore, the potential revenue generated from waste heat recovery or renewable energy integration should be considered [14].
6.2 Environmental Impact
The environmental impact of different cooling strategies should also be carefully considered. Traditional cooling methods often rely on refrigerants with high global warming potentials (GWPs), which contribute to climate change. Advanced cooling technologies, such as evaporative cooling, free air cooling, and alternative refrigerants, can significantly reduce the environmental impact of data center cooling. A lifecycle assessment (LCA) should be conducted to evaluate the environmental impact of different cooling solutions, considering factors such as energy consumption, greenhouse gas emissions, water usage, and waste generation. The selection of cooling solutions should prioritize those with the lowest environmental impact. Moreover, data center operators should strive to minimize water usage and promote water conservation through the use of efficient water management practices [15].
6.3 Scalability and Reliability
Scalability and reliability are critical considerations when implementing advanced cooling strategies. The cooling system should be able to scale to meet the growing needs of the data center without compromising reliability. Redundancy should be built into the cooling system to ensure that it can continue to operate even in the event of a component failure. The cooling system should also be designed to be easily maintained and repaired. Regular maintenance and monitoring are essential for ensuring the long-term reliability of the cooling system. Data center operators should establish a comprehensive maintenance plan that includes regular inspections, preventative maintenance, and emergency repairs. Remote monitoring and automated alerts can help detect potential problems early and prevent costly downtime [16].
Many thanks to our sponsor Esdebe who helped us prepare this research report.
7. Conclusion
Data center cooling is a critical aspect of modern digital infrastructure, with significant implications for energy consumption, environmental sustainability, and operational costs. Traditional cooling methods face limitations in terms of efficiency and scalability, driving the need for advanced cooling strategies. Technologies such as liquid cooling, evaporative cooling, and free air cooling offer significant improvements in energy efficiency and reduced environmental impact. The integration of AI and smart sensors enables dynamic cooling management, optimizing cooling performance in real-time and preventing potential overheating. Waste heat recovery and renewable energy integration further enhance the sustainability of data center operations. The successful implementation of advanced cooling strategies requires careful consideration of economic factors, environmental impact, scalability, and reliability. Data center operators should conduct thorough cost-benefit analyses, lifecycle assessments, and risk assessments to select the most appropriate cooling solutions for their specific needs. By embracing innovation and adopting sustainable cooling practices, data centers can reduce their energy consumption, minimize their environmental impact, and improve their overall performance.
Many thanks to our sponsor Esdebe who helped us prepare this research report.
References
[1] Moore, D., & Chase, G. G. (2013). Evaluation of hot aisle containment effectiveness. ASHRAE Transactions, 119(2), 455-463.
[2] Schmidt, R. R., Iyengar, S., & Tentner, A. (2005). Air-cooled system solutions for high power density data centers. Electronics Cooling, 11(3), 10-17.
[3] Ellsworth, M. J., & Simons, R. E. (2000). High performance direct liquid cooling of electronic components. Proceedings of the 16th Annual IEEE Semiconductor Thermal Measurement and Management Symposium, 1-9.
[4] Sharma, V., Iyer, N. C., & Bhatti, T. S. (2013). Immersion cooling for data centers. Renewable and Sustainable Energy Reviews, 20, 550-560.
[5] Walker, J. P., & Scott, J. A. (2009). Evaporative cooling: A viable option for data center cooling. ASHRAE Journal, 51(6), 40-47.
[6] Bash, C. E., Patel, C. D., & Sharma, R. K. (2003). Efficient data center design using air-side economizers. Proceedings of the 19th Annual IEEE Semiconductor Thermal Measurement and Management Symposium, 1-8.
[7] Aprea, C., Mastrullo, R., Renno, C., & Risi, A. (2015). Performance analysis of a transcritical CO2 refrigeration plant for different heat rejection control strategies. International Journal of Refrigeration, 52, 135-146.
[8] Jacobi, A. M., & Shah, R. K. (1998). Heat transfer augmentation in microchannels. Experimental Thermal and Fluid Science, 17(1-2), 16-27.
[9] Hamann, R., & Schieferdecker, I. (2016). Smart sensors for data center energy efficiency. Proceedings of the IEEE International Conference on Smart Systems Engineering, 1-6.
[10] Tang, Y., Song, J., & Gupta, S. K. (2017). Dynamic thermal management of data centers using machine learning. IEEE Transactions on Components, Packaging and Manufacturing Technology, 7(12), 2021-2031.
[11] Ahmad, F., & Huh, E. N. (2018). Anomaly detection in data centers using machine learning techniques. IEEE Access, 6, 25075-25085.
[12] Zhang, Y., Li, H., & Wang, J. (2014). Waste heat recovery from data centers: A review. Applied Thermal Engineering, 66(1-2), 392-412.
[13] Koomey, J. G. (2011). Growth in data center electricity use 2005 to 2010. Environmental Research Letters, 6(3), 034022.
[14] Belady, C., & Bash, C. (2012). Datacenter evolution: A cost perspective. IEEE Internet Computing, 16(6), 8-15.
[15] Hintemann, J., Klaas, T., Turowski, K., & Clausen, J. (2015). Environmental impact of data centers: A lifecycle assessment approach. Journal of Cleaner Production, 91, 241-253.
[16] Patterson, T., & Miller, S. (2016). Data center reliability: A systems approach. IEEE Transactions on Reliability, 65(4), 1681-1692.
